Wheel spacers are a popular upgrade among car enthusiasts, offering improved stance, handling, and clearance for wider tires or bigger brake kits. If you're looking to install wheel spacers on your vehicle, this guide will walk you through the process safely and effectively.
What Are Wheel Spacers?

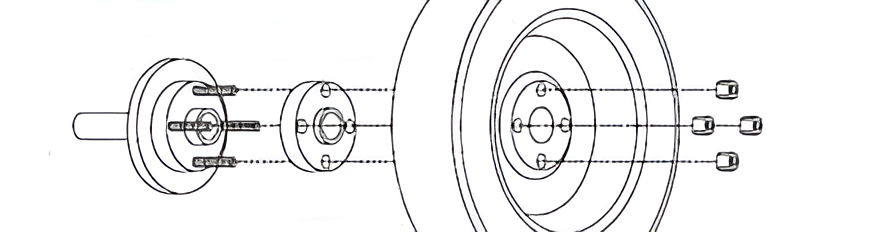

Wheel spacers are metal discs that fit between the wheel hub and the wheel itself, pushing the wheels outward. They create extra clearance for larger tires, improve stability, and can enhance the car's overall appearance. Wheel spacers come in different sizes (thicknesses) and types, including:
- Slip-On Spacers: These slide onto the wheel hub and require longer wheel bolts or studs for proper installation.
- Bolt-On Spacers: These spacers attach directly to the hub using separate lug nuts and have their own studs to secure the wheels.
Choosing the right type and size is essential for safety and performance.
Tools & Equipment Needed
Before starting, gather the following tools:
✔ Jack and jack stands
✔ Lug wrench or impact wrench
✔ Torque wrench
✔ Wheel chocks
✔ Thread locker (for bolt-on spacers)
✔ Anti-seize lubricant (optional)
Step-by-Step Guide to Installing Wheel Spacers
Step 1: Park and Secure the Vehicle
- Park your vehicle on a level surface.
- Engage the parking brake and place wheel chocks behind the wheels to prevent movement.
Step 2: Loosen the Lug Nuts
- Before lifting the vehicle, use a lug wrench to slightly loosen the lug nuts on the wheels where you’ll be installing spacers.
Step 3: Lift the Vehicle
- Use a jack to raise the car and secure it with jack stands for safety.
- Never work under a car supported only by a jack!
Step 4: Remove the Wheels
- Fully remove the loosened lug nuts and take off the wheels.
Step 5: Clean the Hub Surface
- Use a wire brush or cloth to clean the wheel hub and mounting surface.
- Removing dirt and rust ensures proper contact and prevents vibration.
Step 6: Install the Wheel Spacers
For Slip-On Spacers:
- Slide the spacer onto the wheel hub, ensuring a flush fit.
- If needed, install extended wheel bolts to accommodate the extra thickness.
For Bolt-On Spacers:
- Align the spacer with the hub and secure it using the provided lug nuts.
- Apply thread locker to the bolts for added security.
- Tighten the nuts in a crisscross pattern to ensure even pressure.
Step 7: Reinstall the Wheels
- Position the wheel back onto the spacer and secure it with the lug nuts.
- Hand-tighten the lug nuts before lowering the vehicle.
Step 8: Lower the Vehicle and Torque the Lug Nuts
- Carefully lower the car to the ground.
- Use a torque wrench to tighten the lug nuts to the manufacturer’s specifications.
- Tighten in a crisscross pattern to prevent misalignment.
Post-Installation Check
- Test Drive: Take a short drive at low speeds, checking for vibrations or unusual noises.
- Re-Torque the Lug Nuts: After driving 50-100 miles, re-check and re-tighten the lug nuts to ensure they haven't loosened.
- Inspect Regularly: Periodically inspect the spacers and lug nuts for signs of wear or loosening.
Are Wheel Spacers Safe?
When installed correctly and matched to the right specifications, wheel spacers are safe and widely used in motorsports and daily driving. Always ensure:
- You use high-quality, hub-centric spacers (not universal ones).
- You properly torque all fasteners.
- You use appropriate extended bolts or studs if required.
Final Thoughts
Installing wheel spacers is a straightforward process that can enhance your vehicle’s look and handling. By following this guide and using proper tools, you can safely install them and enjoy the benefits they provide.
